Filtration
AAtanks offers two filter housing designs: Cartridge Filter and Bag Filter vessels. Filter vessels are designed to house cartridge or bag filters and offer high pressure and high flow filtration for a broad range of liquid and gas applications.
Cartridge Filtration
The standard cartridge filter (CF) series can accommodate double open-end and single open-end cartridges in various lengths. The high pressure (HP) series is rated up to 1,610 psi. The high flow (HF) series can be designed to handle flow rates of up to 6,650 gpm. ASME-code designs and non-ASME are available.

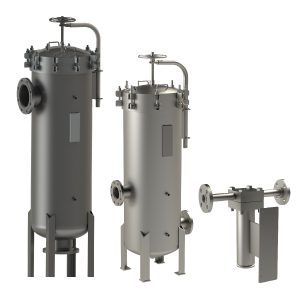

CF (Cartridge Filter) Series Cartridge Housing
Download CF Series Cartridge Filtration Housing Submittal Form
Construction:
- ASME Design and Fabrication (Non-ASME available)
- Available in Carbon Steel, 304 or 316/316L Stainless Steel
- Maximum Flow of up to 2,040 GPM
- Maximum Design Temperature of 500F
- Standard Design Pressures of 150 PSI and 300 PSI (Higher Design Pressures Available)
- Standard O-ring Buna-N (Viton, Neoprene, EPDM and Fluoropolymer Elastomers Available)
- Carbon Steel Mechanical or Hydraulic Cover Lift Available on Select Models.
HP (High Pressure) Series Cartridge Housing
Download HP Series Cartridge Filtration Housing Submittal Form
Construction:
- ASME Design and Fabrication (Non-ASME available)
- Available in Carbon Steel, 304 or 316/316L Stainless Steel
- Maximum Flow of up to 18 GPM
- Maximum Design Temperature of 300F
- Design Pressures up to 1610 PSI
- Standard O-ring Buna-N (Viton, Neoprene, EPDM and Fluoropolymer Elastomers Available)

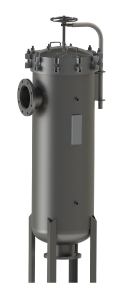

HF (High Flow) Series Cartridge Housing
Download HF Series Cartridge Filtration Housing Submittal Form
Construction:
- ASME Design and Fabrication (Non-ASME available)
- Available in Carbon Steel, 304 or 316/316L Stainless Steel
- Vertical or Horizontal Configurations
- Designed to Utilize Cartridges for High Flows up to 500 GPM per 60" length.
- Maximum Design Temperature of 500F
- Standard Design Pressures of 150 PSI and 300 PSI (Higher Design Pressures Available)
- Standard O-ring Buna-N (Viton, Neoprene, EPDM and Fluoropolymer Elastomers Available)
4NCF (Non-ASME) Series Cartridge Housing
Download 4NCF Series Cartridge Filtration Housing Submittal Form
Construction:
- Non-ASME Construction
- 304 Stainless Steel Construction
- Maximum Design Pressure 150 PSI at 300F
- Maximum Flow up to 380 GPM
Bag Filtration
The bag filter series is designed to handle flow rates of up to 4,200 gpm. The bag and strainer filter vessels provide excellent filtration in both industrial and chemical applications. Standard design pressure is 150 psi and has positive bag media seal prior to sealing the vessel. All aspects of design, materials, construction and workmanship conform to ASME code, but are also available in non-ASME.

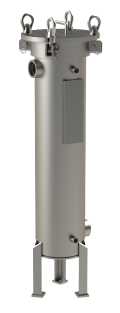

BF (Bag Filter) Series Housing
Download BF Housing Submittal Form
Construction:
- ASME Design and Fabrication (Non-ASME available)
- Accepts Standard #1 and #2 Size Bag Filters
- Available in Carbon Steel, 304 or 316/316L Stainless Steel
- Maximum Flow of up to 1,440 GPM
- Maximum Design Temperature of 500F
- Standard Design Pressures of 150 PSI and 300 PSI (Higher Design Pressures Available)
- Standard O-ring Buna-N (Viton, Neoprene, EPDM and Fluoropolymer Elastomers Available)
GB (Multiple Bags) Series Housing
Download GB Housing Submittal Form
Construction:
- ASME Design and Fabrication (Non-ASME available)
- Multi-round Bage Filter Housing
- Available in Carbon Steel, 304 or 316/316L Stainless Steel
- Maximum Flow of up to 4,200 GPM
- Maximum Design Temperature of 500F
- Standard Design Pressures of 150 PSI and 300 PSI (Higher Design Pressures Available)
- Standard O-ring Buna-N (Viton, Neoprene, EPDM and Fluoropolymer Elastomers Available)
4NBF (Non-ASME Bag Filtration) Series Housing
Download 4NBF Housing Submittal Form
Construction:
- Non-ASME Construction
- 304 Stainless Steel Construction
- Maximum Design Pressure 150 PSI at 300F
- Maximum Flow up to 960 GPM\
- Designed to Accept Bag Sizes 1, 2, 3, and 4.
