ASME Surge Arrestor Tanks

Surge Arrestor Tanks Surge Arrestor Tanks

Surge arrestor tanks are ASME code design replaceable bladder type pre-charged hydro-pneumatic tanks for commercial, industrial, municipal well water systems, & fire protection systems. Surge arrestor tanks are designed to effectively control water hammer shock and pump start-up / shut-down water surge.

Surge arrestor tanks are designed with a large water system connection to accept potentially harmful water surge pressures quickly with minimal pressure drop.

Construction is carbon steel with a heavy-duty butyl rubber replaceable bladder. Standard working pressure design is 125 psi with up to 500 psi available. Occasionally, some variations to this standard product line are required to solve specific applications. Custom designs are available.

Models SSA 35 to SSA 20,000 Surge Arrestor Tanks
Download Models SSA 35 - SSA 10,000 Surge Arrestor Tanks Submittal Form [.pdf]
Download Models SSA 35E - SSA 10,000E Surge Arrestor Tanks Submittal Form [.pdf]
Construction
  • Shell: Carbon Steel
  • Bladder: Heavy Duty Butyl Rubber (NSF Certified / FDA Approved Materials)
  • Finish: Standard Red Oxide Prime Painted
  • System Connection - Epoxy Coated Carbon Steel
  • Maximum Design Temperature: 240°F
  • Maximum Design Pressure: 500 PSI (Higher Design Pressures Available)
  • Factory Pre-Charge: 12 PSI (Field Adjustable)
  • Level Gauge Available Upon Request
  • Exterior Epoxy Finish Available Upon Request
  • Interior Epoxy Finish Available Upon Request
Models SSA 424-40 to SSA 848-500 Surge Arrestor Tanks
Download our Models SSA 424-40 to SSA 848-500 Surge Arrestor Tanks Submittal Form [.pdf]
Construction
  • Shell: Carbon Steel
  • Bladder: Heavy Duty Butyl Rubber (NSF Certified / FDA Approved Materials)
  • External Finish: Primer
  • Internal Finish: Epoxy Coated
  • System Connection - Epoxy Coated Carbon Steel
  • Maximum Design Temperature: 240°F
  • Maximum Design Pressure: 275 & 500 PSI (Higher Design Pressures Available)
  • Factory Pre-Charge: 12 PSI (Field Adjustable)

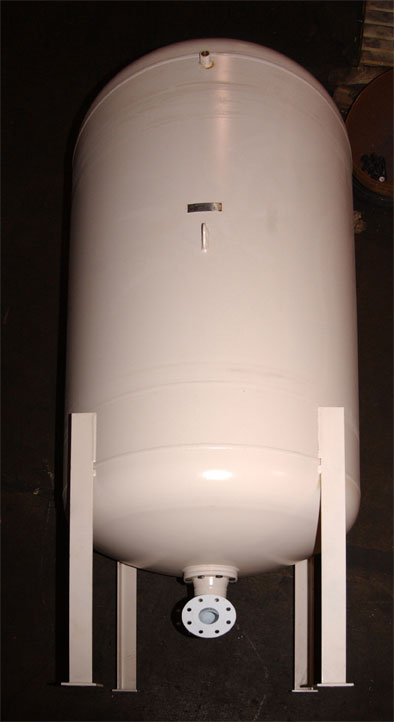

Plain Steel Epoxy Lined Surge Arrestors

Plain steel epoxy-lined surge arrestor tanks are the non-bladder type in carbon steel. Surge arrestor tanks are designed to efficiently control water hammer shock and pump start-up/shut-down water Surge. Plain steel surge arrestor tanks are custom built to your specification and available with the appropriate epoxy lining for your application.

Download our Custom Horizontal Surge Arrestors Submittal Form [.pdf]
Download our Custom Vertical Surge Arrestors Submittal Form [.pdf]
Construction:
  • Shell: Carbon Steel
  • Custom Designing: Consult for pricing
  • Vertical or Horizontal
  • Wide Range of Design Temperatures
  • Wide Range of Epoxy Linings Available
  • Working Pressures from Full Vacuum to 2,000 PSI
  • ASME Construction
  • CE and CRN certification available
