Storage Tanks / Custom Tanks

Custom Tanks Custom Storage Tanks

Storage Tanks

Storage Tanks are ASME code design and used for the storage fluids for commercial and industrial applications. Specific linings are available for the protection of the tanks inner walls. Standard design tanks are available in a wide variety of sizes, both vertical and horizontal.

We offer pressure vessels and custom storage tanks to your specifications for OEM and commercial uses to ASME Section VIII, Div. 1 and ASME Section IV, HLW. Many internal linings and external coatings are available.

GA 200M to GA 1500M Glass Lined Storage Tanks
Download GA 200M to GA 1500M Glass Lined Storage Tanks Submittal Form [.pdf]
GN120VJ to GA1000VJ Insulated & Jacketed Glass Lined Storage Tanks
Download GN120VJ to GA1000VJ Insulated & Jacketed Glass Lined Storage Tanks Submittal Form [.pdf}
Construction:
  • Shell: Carbon Steel
  • Interior: Glass Lined (5 year limited warranty)
  • Magnesium Anode Rods
  • Vertical of Horizontal Installation
  • Maximum Design Temperature: 180°F
  • Maximum Design Pressure: 125 PSI (some models 150 PSI)
  • Finish: Standard Red Oxide Prime Painted
  • Insulation (on VJ models): 2" High Density (ASHRAE 90 lb.-1992)
EPA-140 to EPA-535 Epoxy Lined Storage Tanks
Download EPA-140 to EPA-535 Epoxy Lined Storage Tanks Submittal Form [.pdf]
Construction:
  • Shell: Carbon Steel
  • Interior: Epoxy Lined (NSF listed)
  • Finish: Standard Red Oxide Prime Painted
  • Maximum Design Temperature: 180°F
  • Maximum Design Pressure: 150 PSI

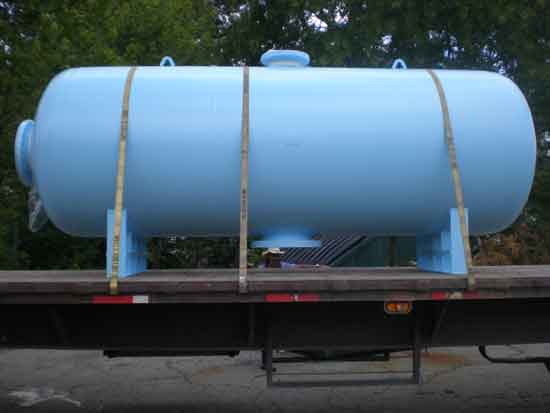

Custom Storage Tanks
Download a Custom Horizontal Storage Tanks quote spec. sheet [.pdf]
Download a Custom Vertical Storage Tanks quote spec. sheet [.pdf]
Quote Custom Storage Tanks
Request a quote on Custom Storage Tanks
Construction:
  • Custom Built For Your Needs
  • Vertical or Horizontal
  • Wide Range of Design Temperatures
  • Wide Range of Working Pressures Available
  • Custom Linings Available for Specific Applications
  • ASME Construction
  • CE and CRN certification available
